Available Now
AQUABOOST TRAXLOG
WiFi ECU Dashboard & Diagnostic Tool exclusively for Honda AquaTrax
Price
$299USD+ free US shipping

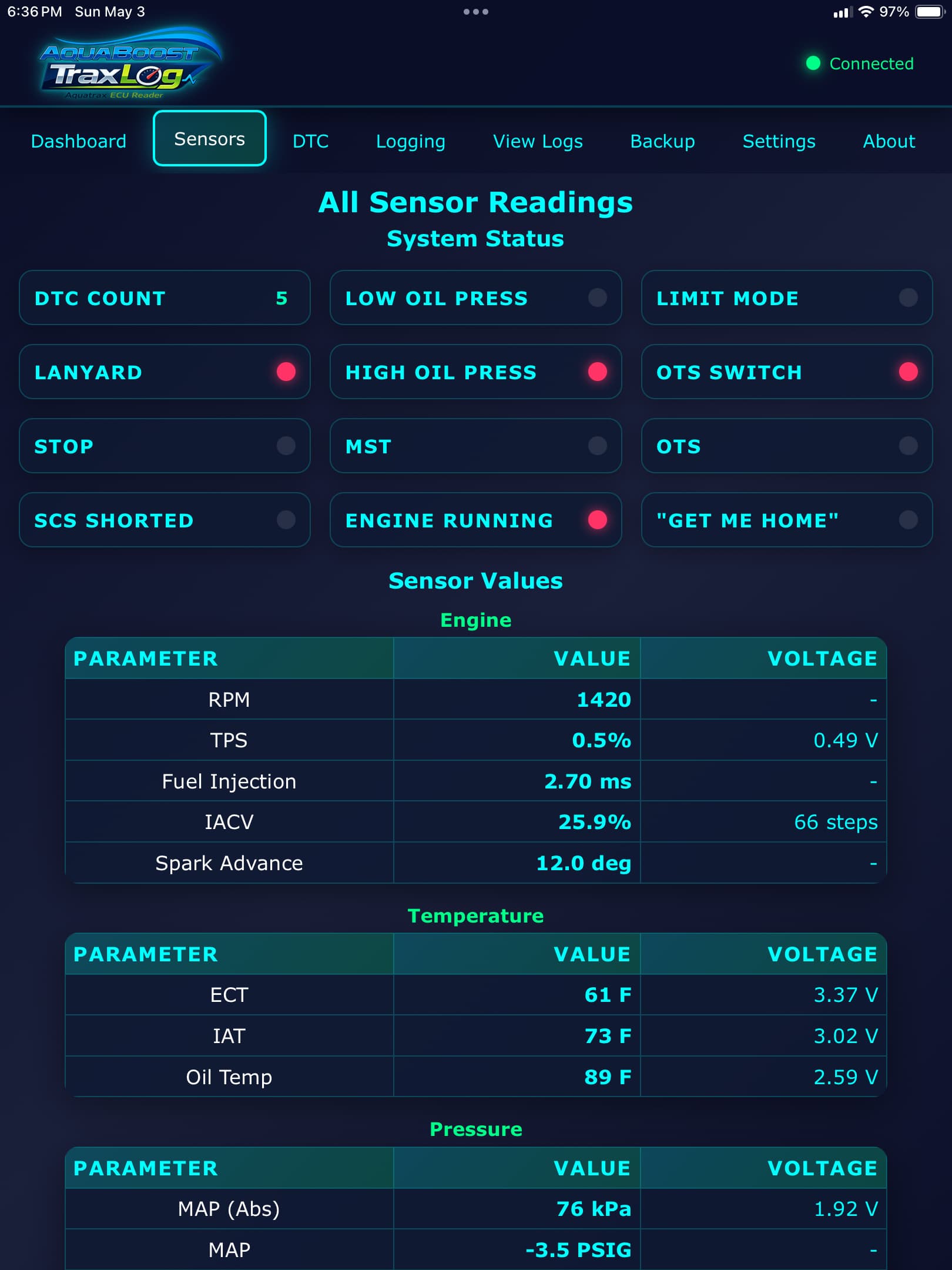

- Real-time engine monitoring — RPM, boost pressure, temperature, and more

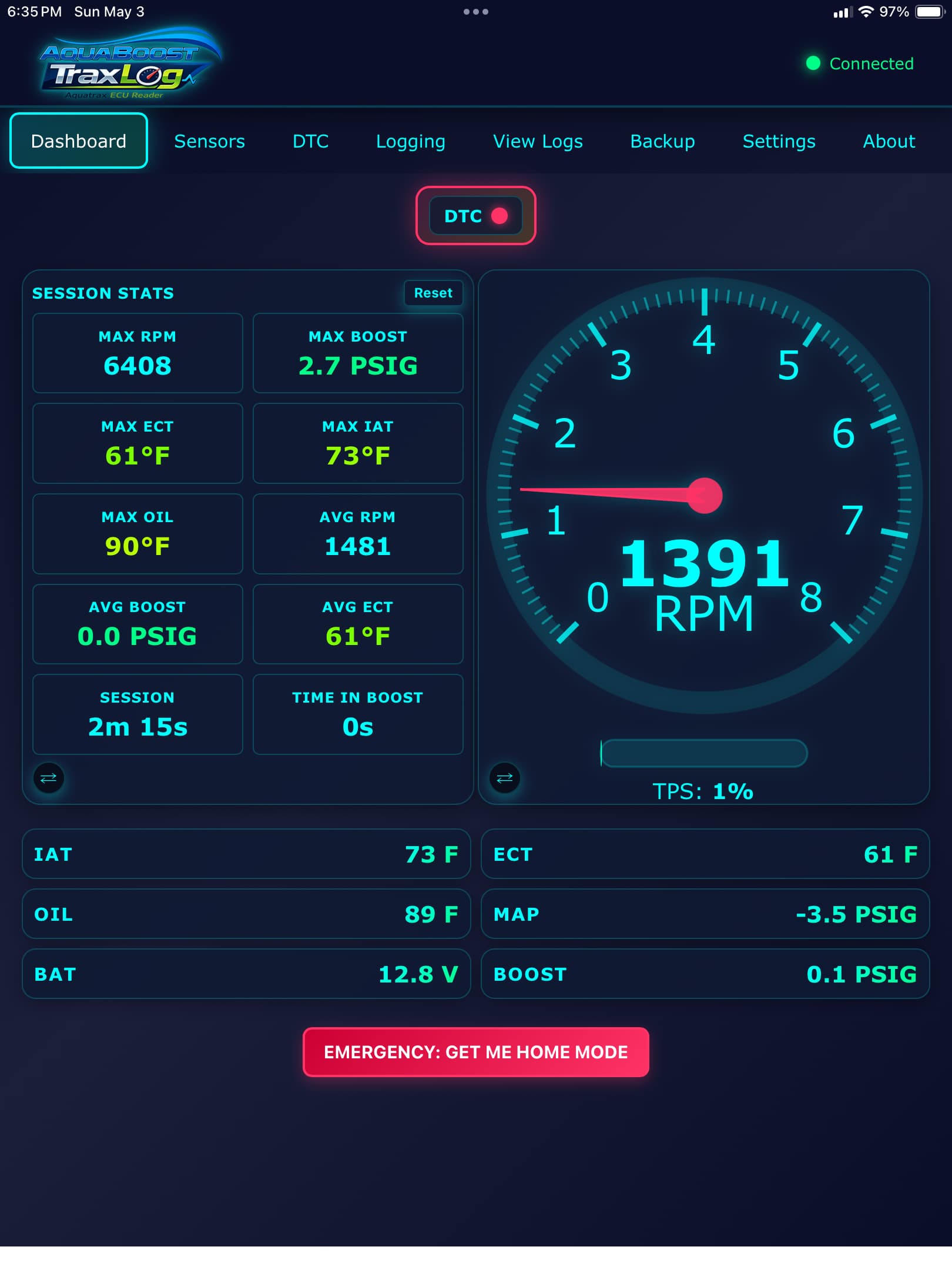

- Interactive gauges with color-coded warnings for at-a-glance awareness

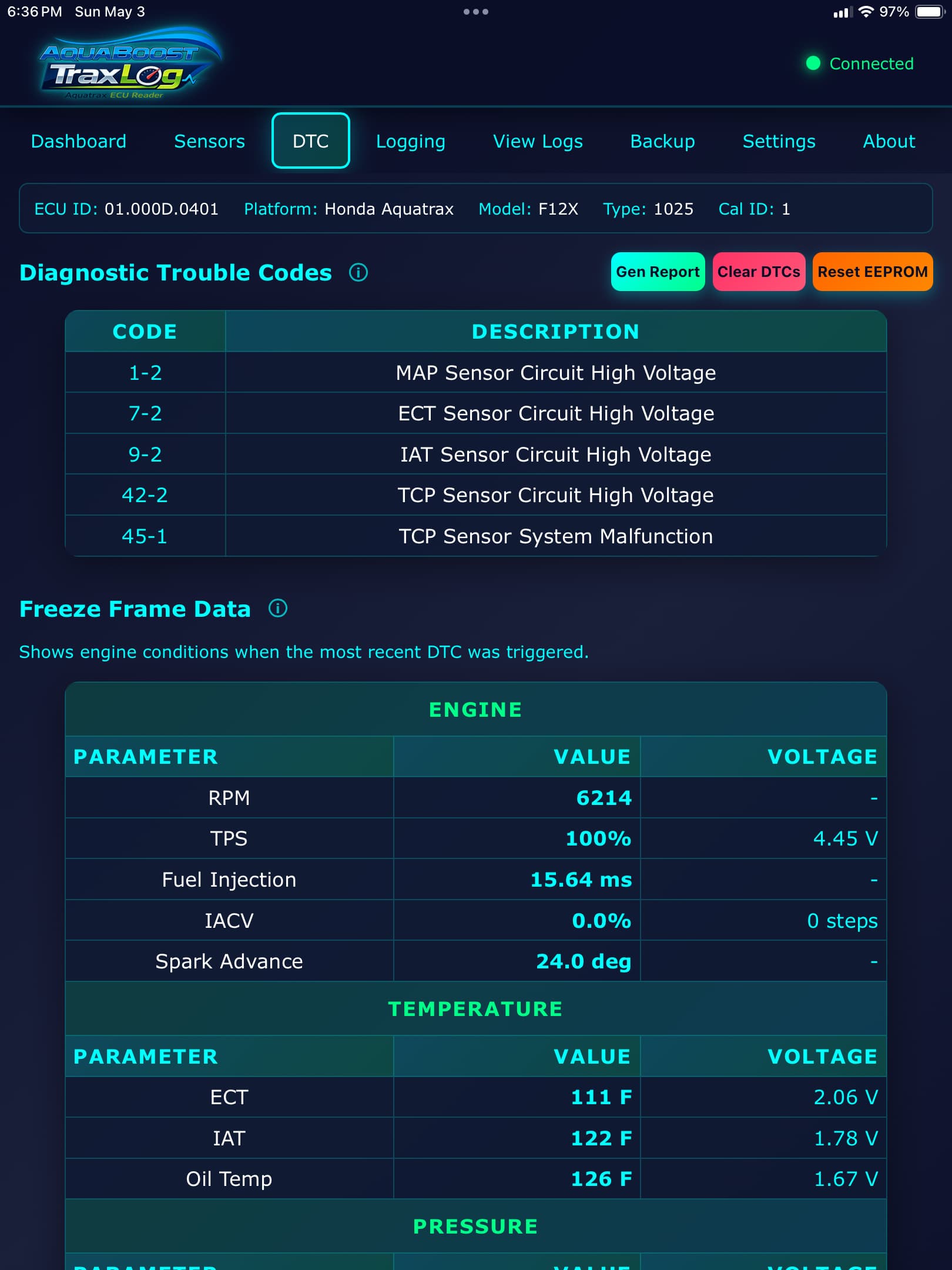

- Read and clear Honda AquaTrax Diagnostic Trouble Codes (DTCs)
- Built-in DTC troubleshooting tips for faster diagnosis
- Freeze frame data capture and analysis

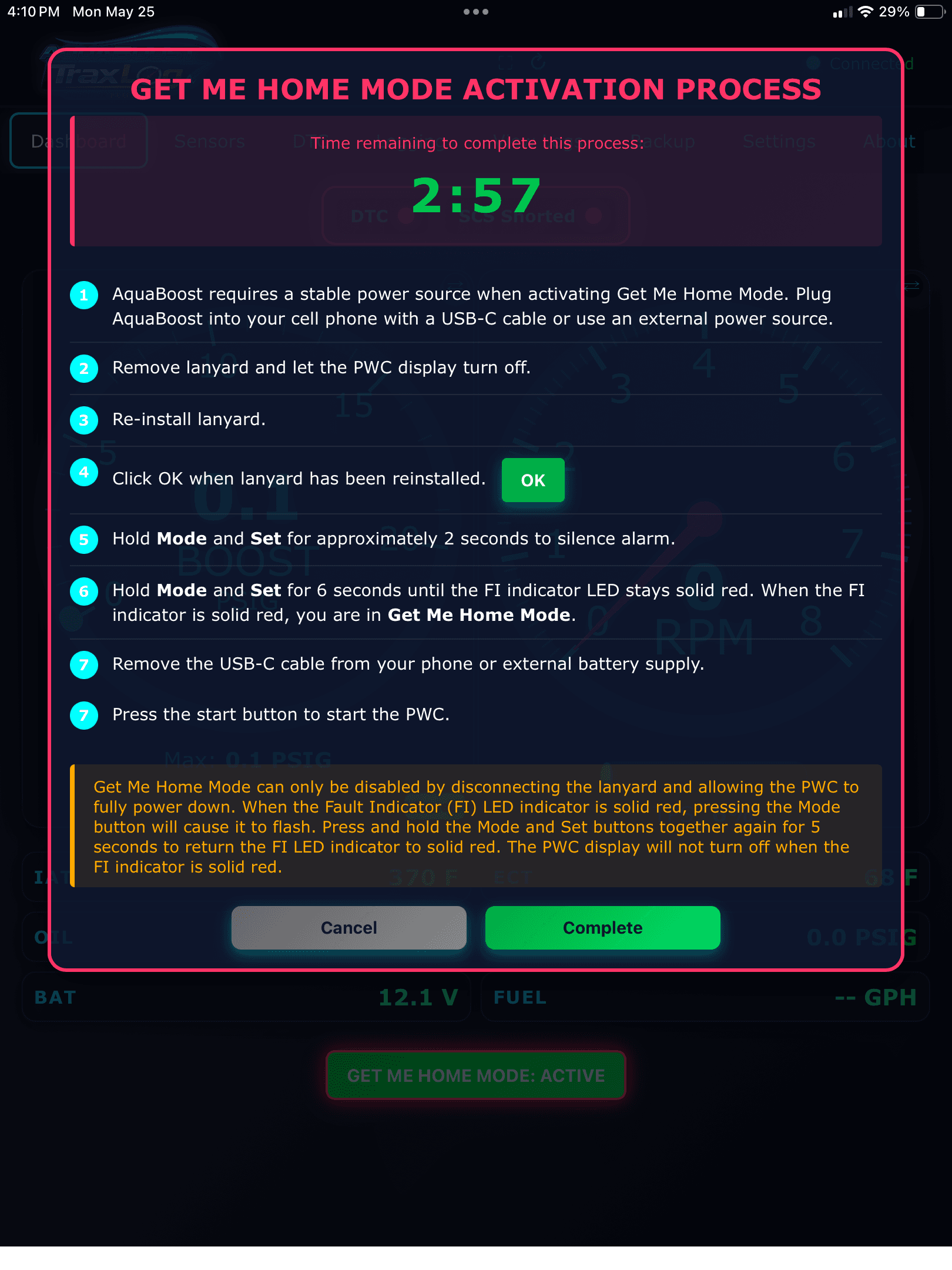

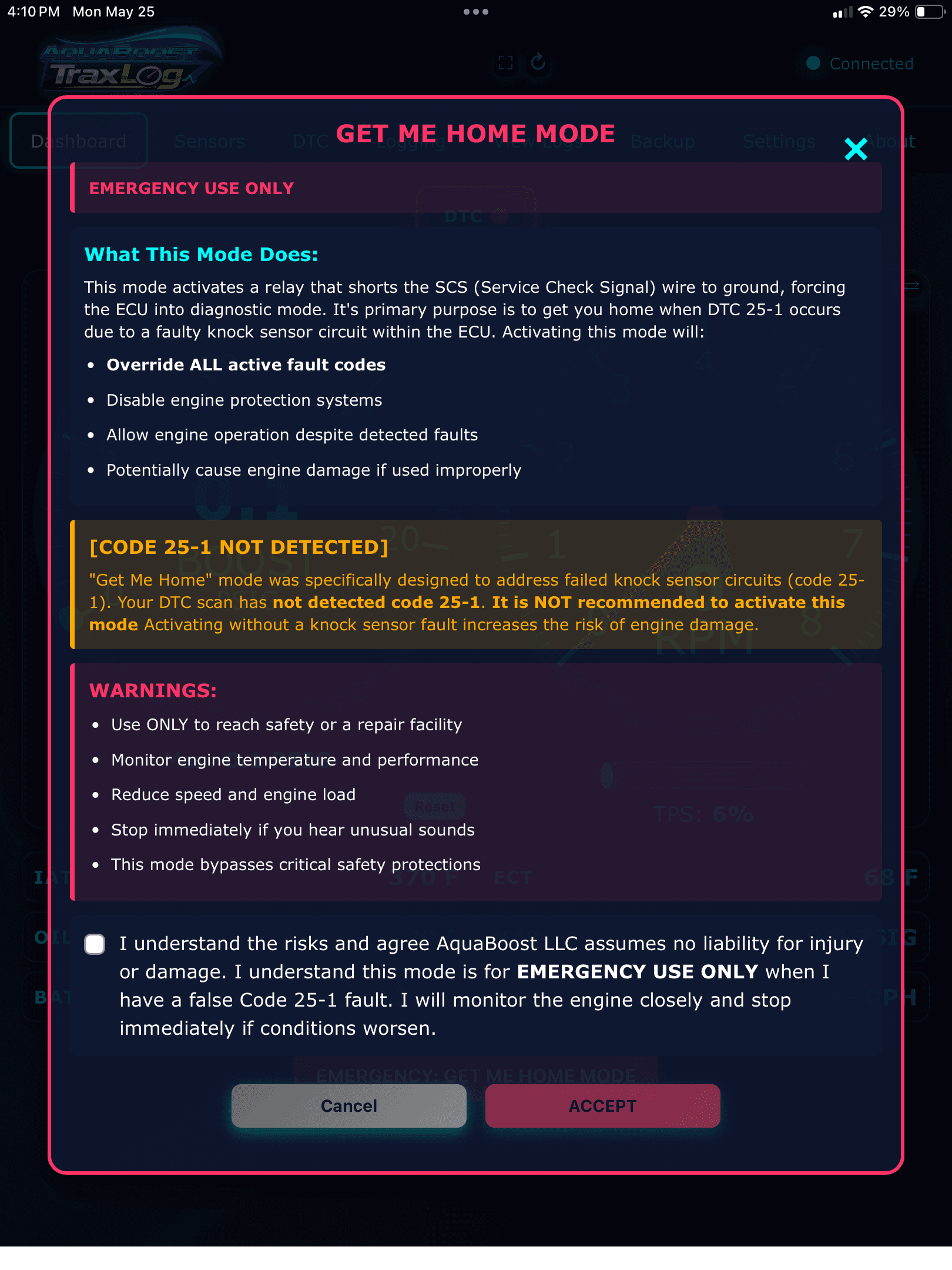

- Get Me Home Mode — manually activate during a Code 25-1 ECU circuit fault to help maintain limited operation while returning to shore
Join the Waitlist
Join the list and we’ll let you know when the next batch opens.
Free US Shipping
Secure Payment
ALL FEATURES
Real-time engine monitoring — RPM, boost pressure, temperature, and more
Interactive gauges with color-coded warnings for at-a-glance awareness
Read and clear Honda AquaTrax Diagnostic Trouble Codes (DTCs)
Built-in DTC troubleshooting tips for faster diagnosis
Freeze frame data capture and analysis
Get Me Home Mode — manually activate during a Code 25-1 ECU circuit fault to help maintain limited operation while returning to shore
Professional-grade diagnostic reports
Generate detailed reports of DTCs and data logs
Save CSV data logs for further analysis or sharing with a technician
Flight Recorder mode — logs ride data straight to the device with no phone connected, ready to review later
Powered by the PWC 12V power supply — USB-C available as an alternative power source for stability
Compact enclosure designed for convenient storage
Automatic backup and restore functionality for datalogging

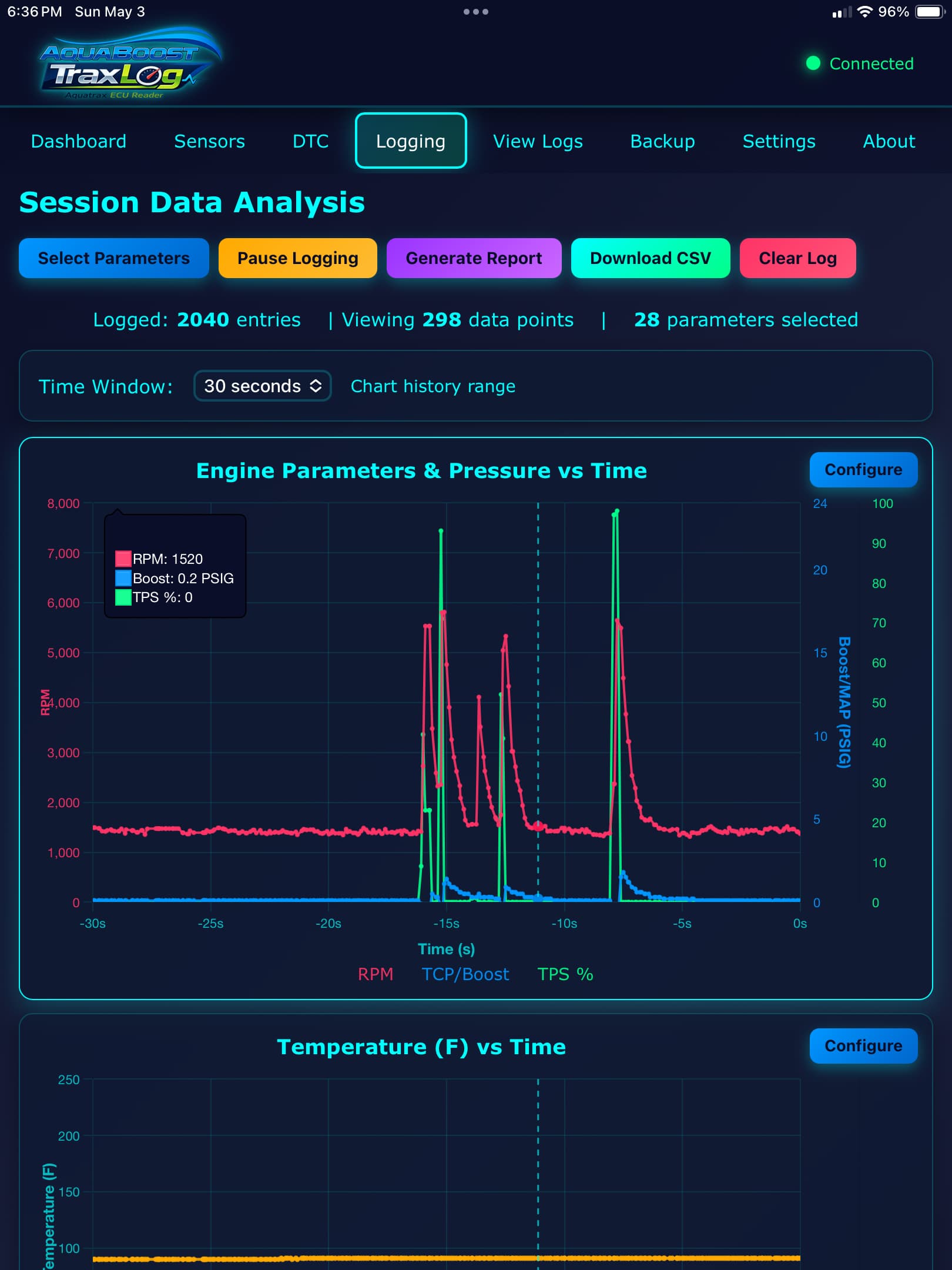

Live charting with customizable time windows
Customizable units — °F/°C, PSI/kPa/BAR
Mobile-responsive web app for smartphones, tablets, and computers — no download required
Smart connection monitoring with auto-reconnect
Clear EEPROM to reset calibration data
No ECU modification — read-only, non-invasive diagnostic interface
SPECIFICATIONS
| Wireless Connection | WiFi — device-hosted web app |
| Compatible Devices | Smartphone, tablet, or computer (any modern browser) |
| Diagnostic Protocol | Honda AquaTrax (proprietary) |
| Power Source | 12V PWC power or USB-C (USB-C prioritized) |
| Module Dimensions | 2" × 2" × ½" |
| Splash Resistance | Splash-resistant module housing |
| Data Export Format | CSV |

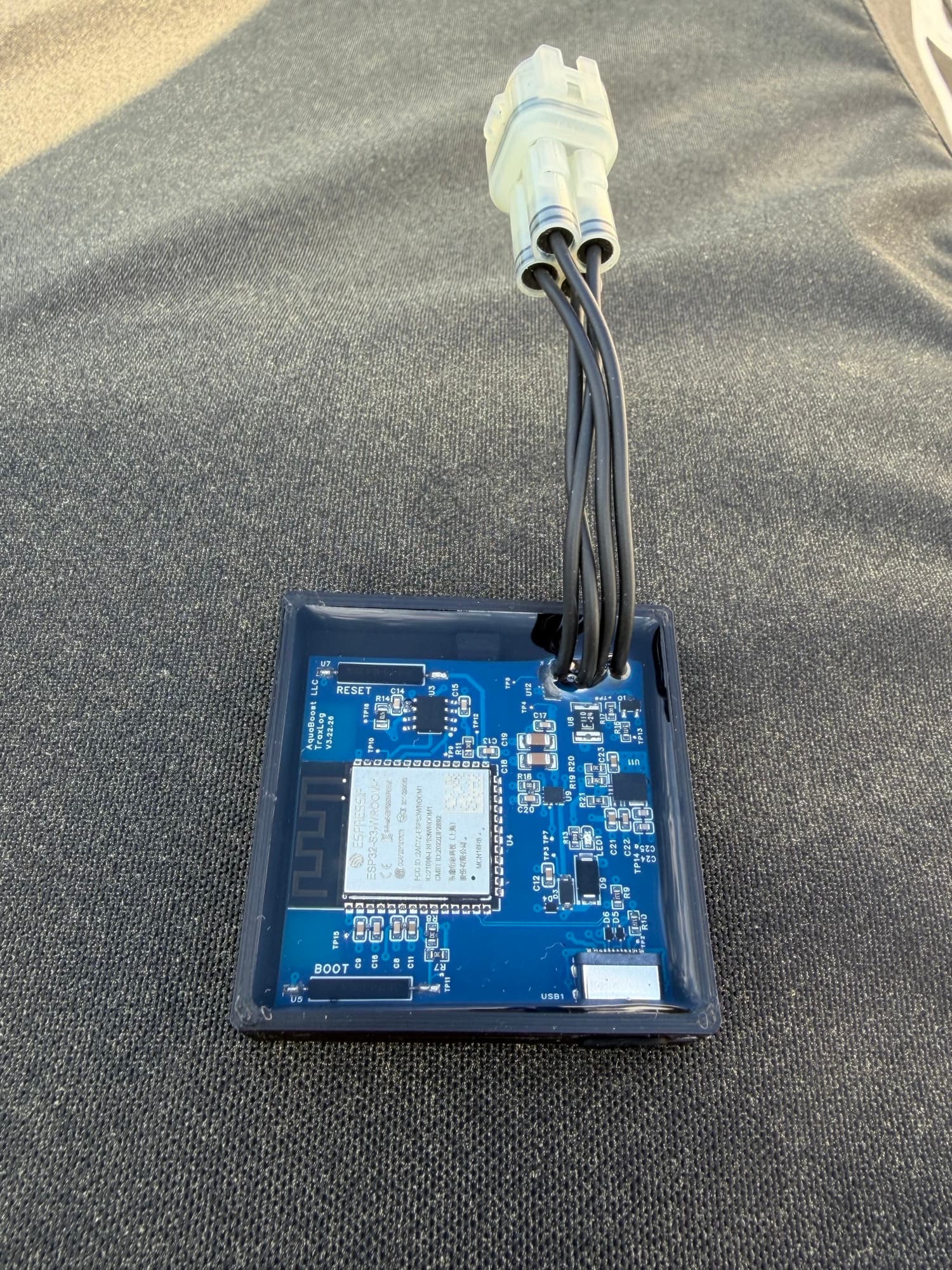

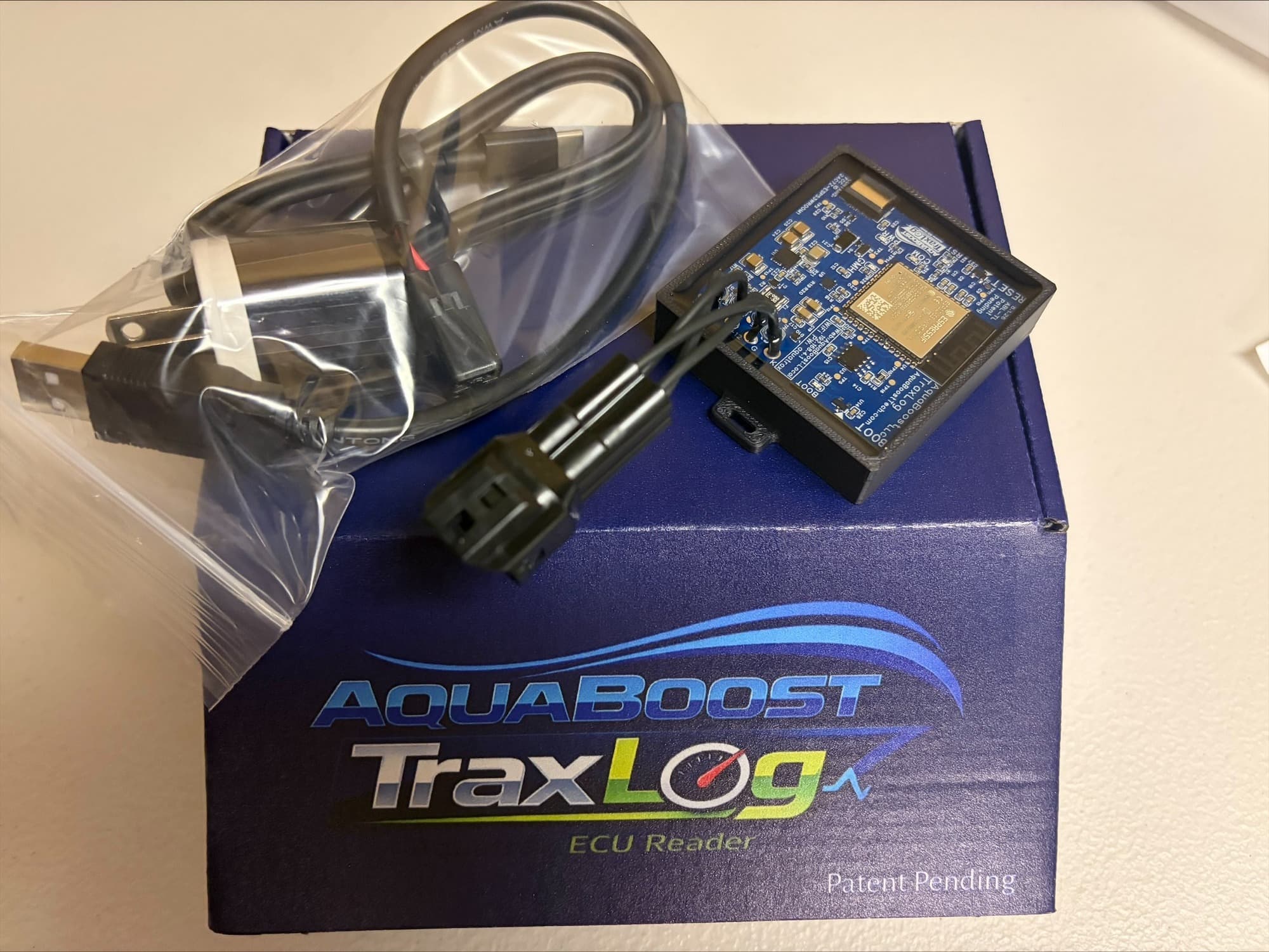

WHAT'S IN THE BOX

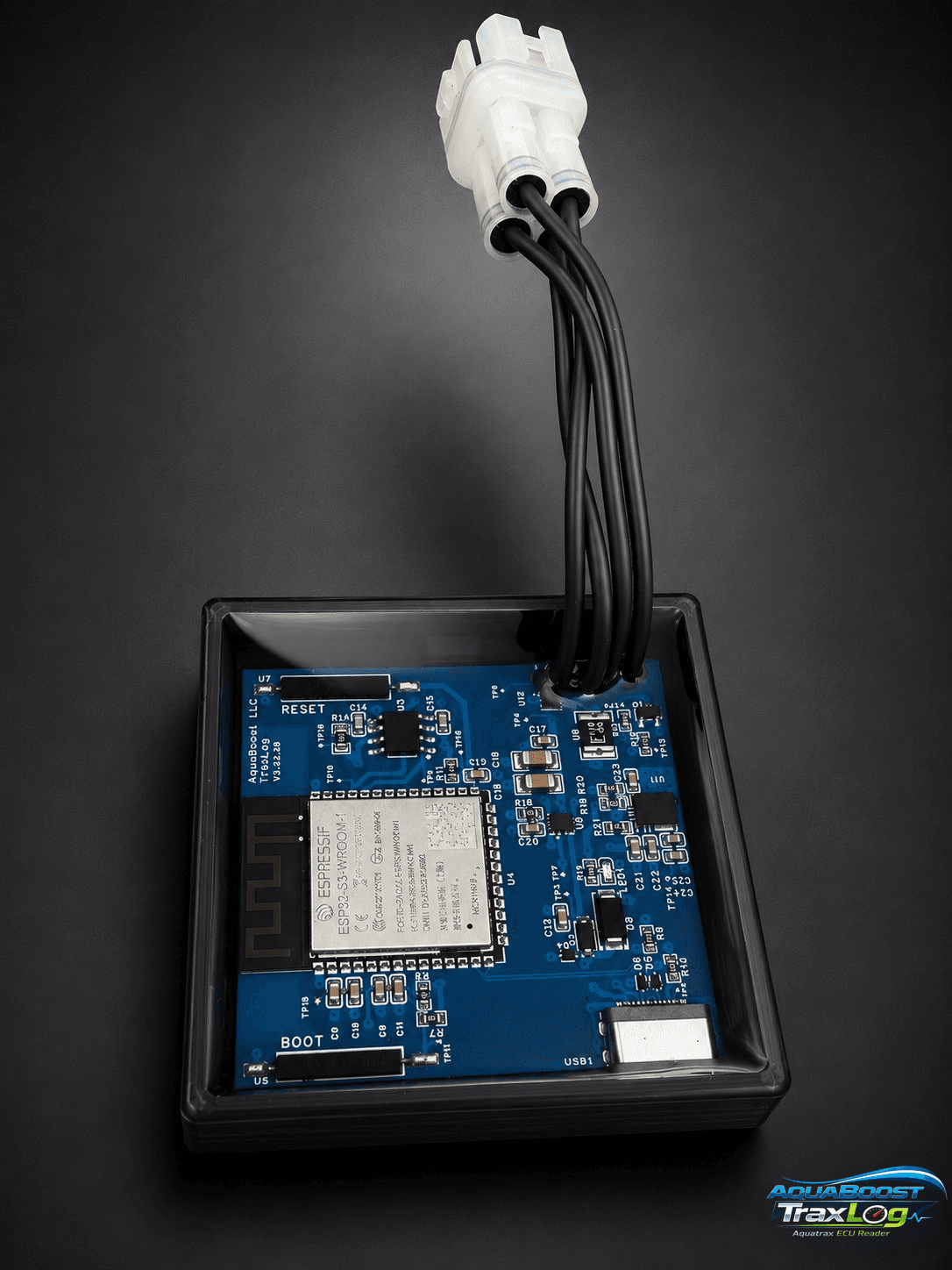

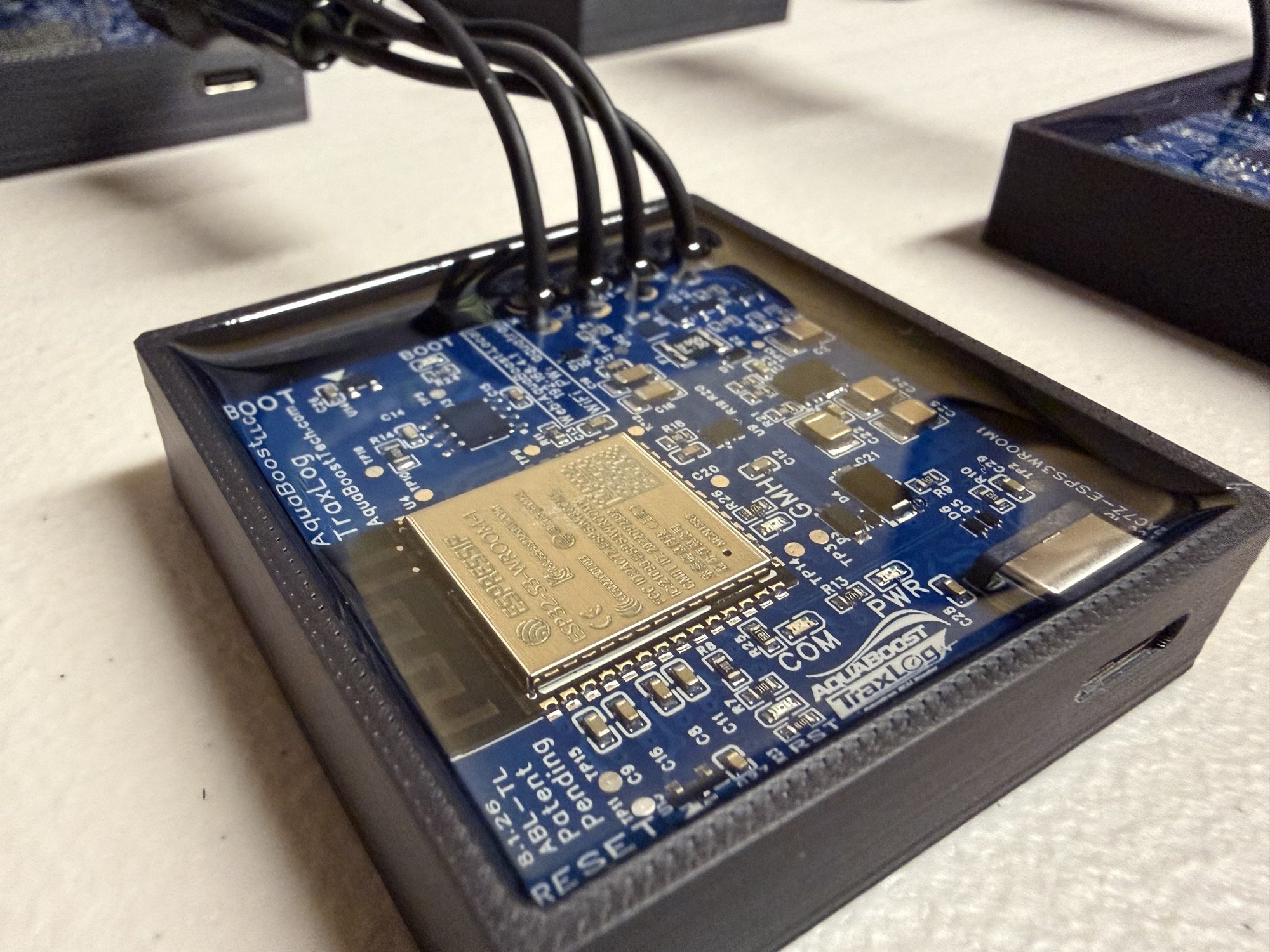

- AquaBoost TraxLog diagnostic module
- USB-C to USB-C cablePowers the module from a phone, computer, or battery pack when not connected to the PWC.
- 4-pin DLC to USB cable with power blockAlternative power from a computer or wall outlet instead of USB-C.
- Quick-start installation guide
No app download required. The web app is hosted directly on the TraxLog — connect via WiFi on any phone, tablet, or computer.
COMPATIBILITY
AquaBoost TraxLog is compatible with the following Honda AquaTrax models.
AquaTrax F-12
2004 – 2007Compatible
AquaTrax F-12X
2004 – 2007Compatible
AquaTrax R-12
2004 – 2007Compatible
AquaTrax R-12X
2004 – 2007Compatible
AquaTrax F-15
2008 – 2009Compatible
AquaTrax F-15X
2008 – 2009Compatible
Not sure about your model? Contact us at our contact page before ordering. TraxLog requires a 2-connector ECU and 4-pin DLC connector. Not compatible with 3-connector ECUs, 2-pin DLC connectors, or any other PWC brand.
READY TO UPGRADE?
AquaBoost LLC assumes no liability for damages arising from product use. Use at your own risk. See Terms & Conditions.
